U3 trådlöst mikrofonsystem för dynamiska mikrofoner

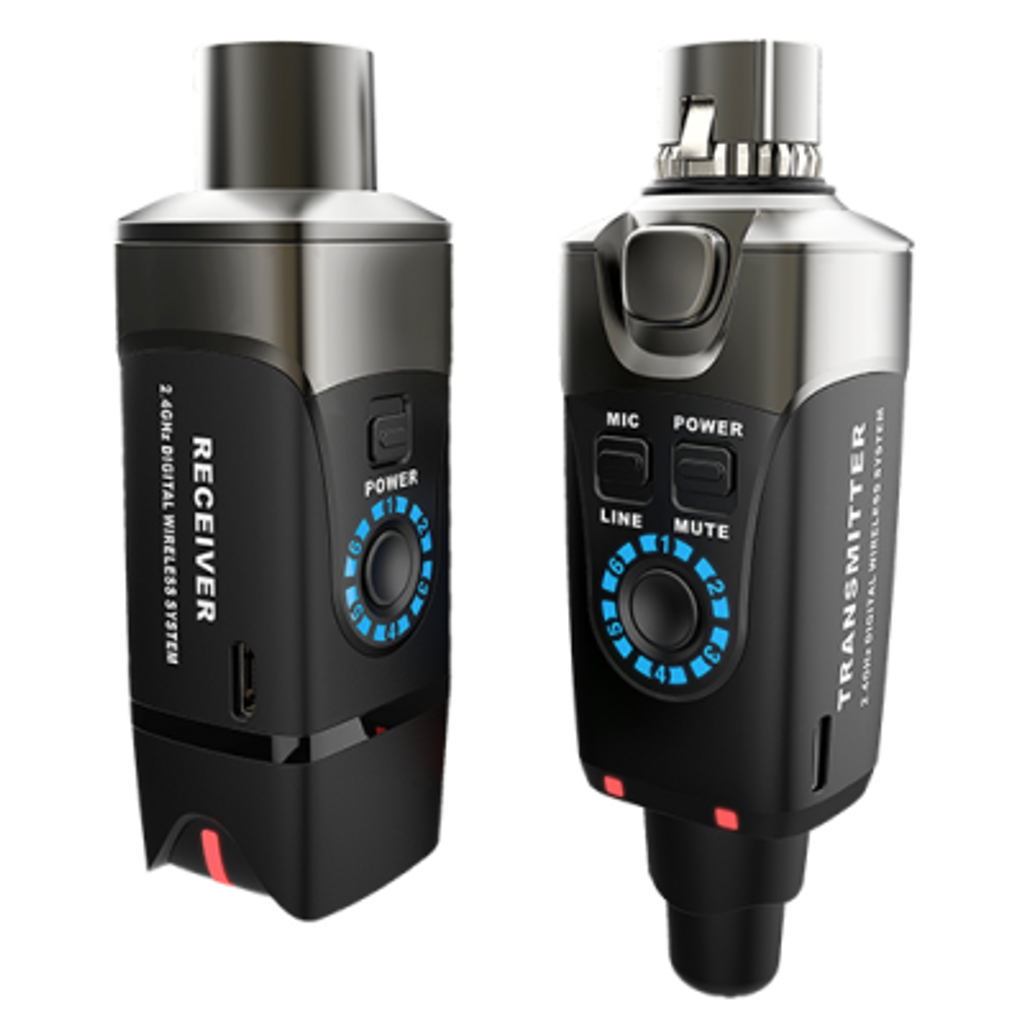

Turn your dynamic microphone into wireless with the U3 2.4 GHz Digital Wireless Microphone System from Xvive Audio. It features a 2.4 GHz wireless band, 20 Hz to 20 kHz frequency response, and less than 5 ms latency. The system works up to 27m range and includes two rechargeable batteries with a five-hour life for both receiver and transmitter units. The transmitter plugs into a dynamic microphone or into DI or XLR output gear, and the receiver plugs into a live sound mixer, portable PA system, or a recorder. This system broadcasts on six channels simultaneously, and is suitable for live vocals, presentations, video productions, and houses of worship.

Details

• Wireless: 2.4 GHz
• Tuning Bandwidth: 2400 to 2483.5 MHz
• Frequency Response: 20 Hz to 20 kHz (-3 dB)
• Latency: less than 5 ms
• Channels: Up to 6 simultaneous channels
• Range: Up to 27m
• Audio: High Resolution 24-bit / 48 kb/s
• Dynamic Range: 110 dB
• SNR: 110 dB
• RF Sensitivity: -88 dBm
• Total Harmonic Distortion: 0.2%
• RF Output Power: 10 mW E.I.R.P. max
• Ports: Transmitter - 1 x XLR male input, 1 x USB, Receiver: 1 x XLR female output, 1 x USB
• Maximum Input Level: Mic Mode - 2.8 V p-p, Line Mode: 7 V p-p
• Maximum Output Level: 2.8 V p-p
• Gain Adjustment Range: Mic - 0 dB, Line - -10 dB
• Antenna Type: 1/4 Wave Sleeve Dipole, non-removable on transmitter and receiver
• Antenna Impedance: 50 Ohms
• Impedance: Transmitter - 15 kOhms, 1 kHz, Receiver - 470 Ohms, 1 kHz
• Battery: 3.7 V rechargeable Li-ion, 860 mA for transmitter and receiver
• Rechargeable Battery Life: 5 hours
• Operating Temperature: -0.4 to 134.6F / -18 to 57C
• Housing: Molded plastic and cast metal
• Dimensions: Transmitter: 3.1 x 2.9 x 9.8 cm, Receiver: 3.1 x 2.9 x 9.8 cm
• Weight: Transmitter - 93 g, Receiver - 92 g
